Ultrasonography

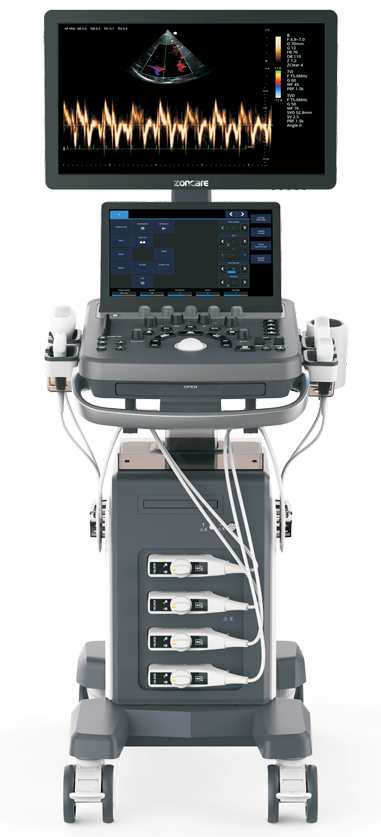

Vu40 Ultrasound Device
• 21.5" Medical monitor - Angle adjustable - Foldable • 13.3" High-sensitivity touchscreen • Angle adjustable • 4 Universal transducer connectors • Optimized control panel - Motorized - Height adjustable - Angle adjustable • Splash-proof panel protection film - Reliable cleaning and disinfection • uSeed Platform • VU 40 facilitates accurate diagnosis based on the uSeed metadata beamforming imaging technology platform. • This brand-new platform is enhanced with CPU + GPU + FPGA heterogeneous computing technology. • Images on the uSeed platform are saved as metadata for later processing. • Technologies - Frequency Composite Imaging: Combines the high penetration of the fundamental frequency and the high resolution of the harmonic frequency to ensure the best image quality, improving detail and contrast resolution in the near and far fields. - Pulse Inverse Harmonic Imaging (PIHI): Maximizes the preservation of the second harmonic wave signal while removing the fundamental wave signal, increasing signal intensity by more than 30% compared to traditional signal processing, reducing noise and artifacts, and improving the contrast resolution of texture images. - ZClear Adaptive Spatial Filtering: This technology monitors each pixel and integrates texture information to effectively remove noise and optimize the texture signal while tracking the specific signals of different texture edges in real time to enhance edges. It preserves valid signals and restores true, accurate, and excellent contrast in two-dimensional images.

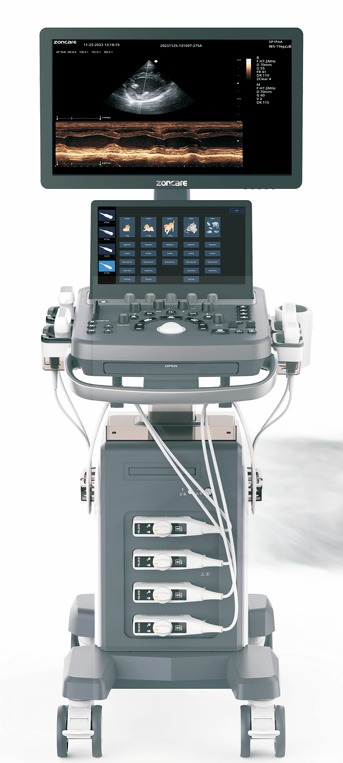

Vu60 Ultrasound Device
• 21.5" Medical monitor- Angle adjustable- Foldable • 13.3" High sensitivity touch screen • Angle adjustable • 4 Universal transducer connectors • Optimized control panel-Motorized-height adjustable-Angle adjustable • Splash-resistant panel protection film-Reliable cleaning and disinfection

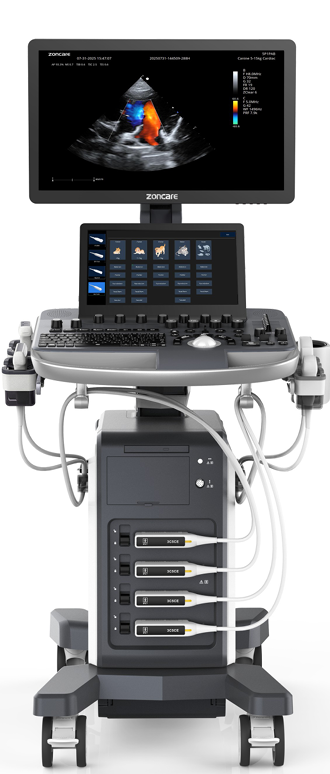

Vu70 Ultrasound Device AI+
• Automated AI-Powered Measurements • AI Support for Kidney Cell Measurements • AI Support for Cardiac Measurements • Ergonomic Design • 21.5" (23.8") Medical LCD Monitor • 13.3" High-Sensitivity Touchscreen with Multi-Angle Adjustment • Highly Adjustable Control Panel • Special Protective Cover for Endocavity Transducer • Replaceable Probe Protector • USB Port • 4 Universal Transducers Included

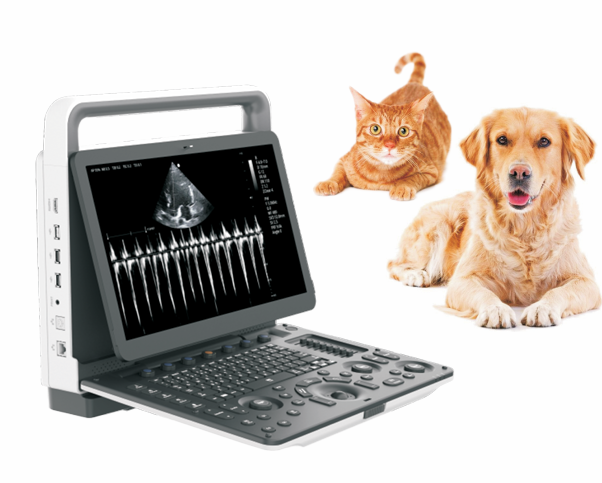

Vu3Exp Ultrasound Device
• Ergonomics Specifically Designed for Veterinary Care: Combining ingenious ergonomic design with a compact size, the VU3EXP boasts remarkable adaptability to diverse and flexible usage scenarios for veterinary applications. • 15.6" Medical Monitor with 75-degree rotation • HDMI port • USB 3.0 port • USB 2.0 ports • Lightweight at 6.3 kg • Built-in Battery • Backlit Keyboard • Splash-resistant keyboard protector film - Reliable cleaning and disinfection • Removable probe holder • 3 Active transducer connectors

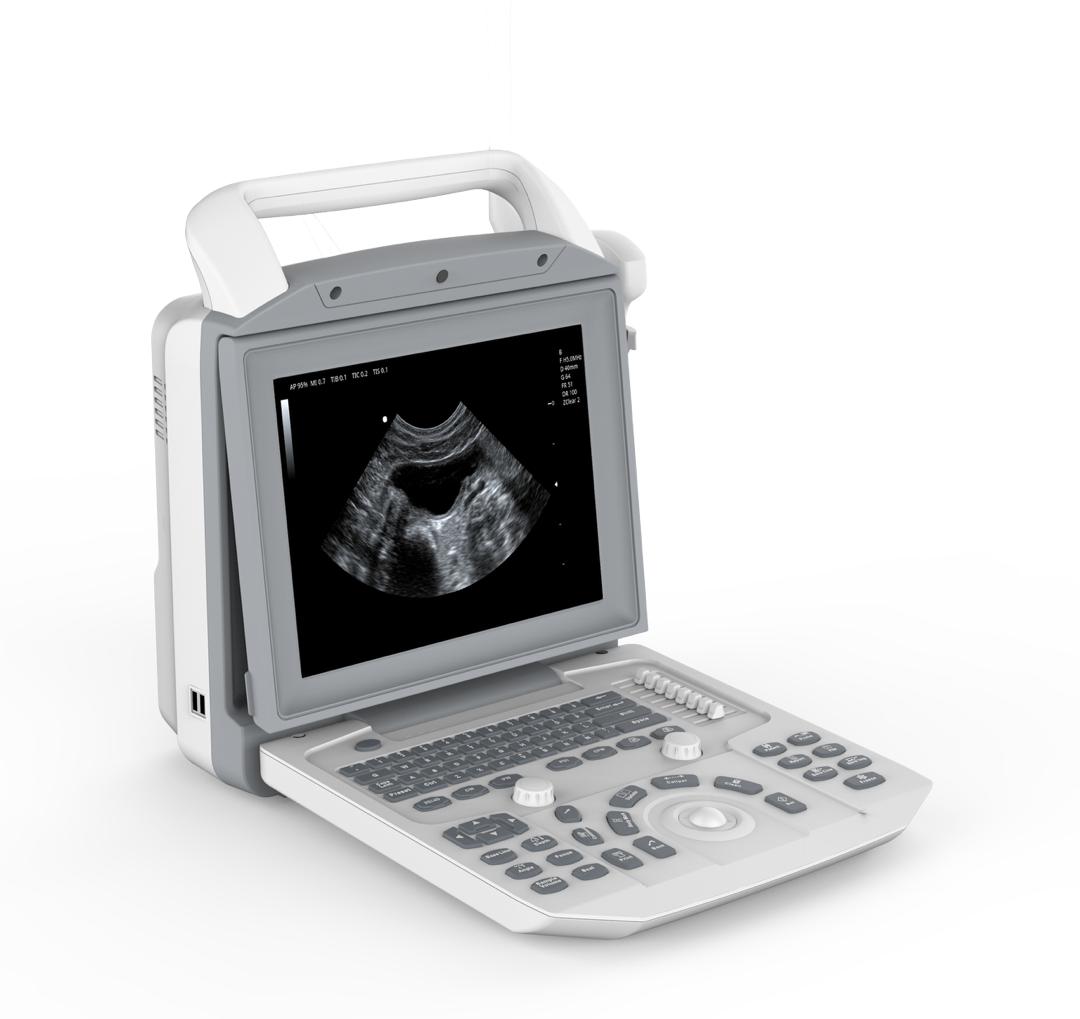

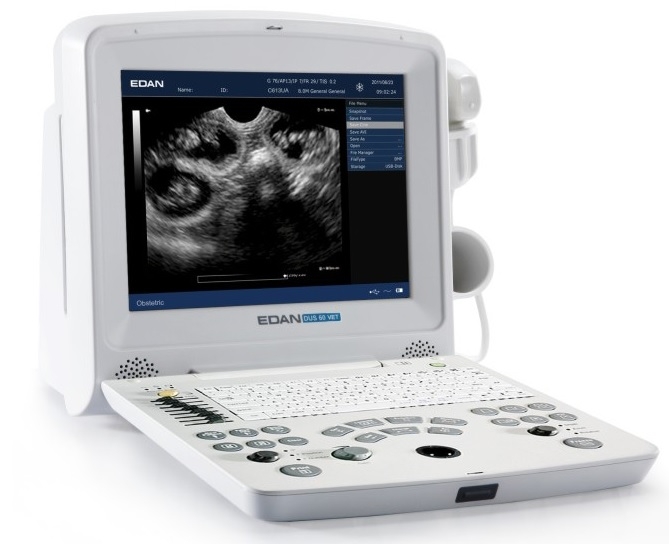

Dus60 Ultrasound Device
• The Veterinary Diagnostic Ultrasound System (DUS 60 VET) is suitable for animal ultrasound evaluation in animal hospitals, veterinary clinics, animal farms, zoos, horse racing centers, and animal breeding/reproduction facilities. • It is designed for use by a veterinarian or similarly qualified healthcare professional, or under their direction, in abdominal, obstetric, muscular, tendon, cardiology, and vascular examinations. • The DUS 60 VET is a portable Veterinary Diagnostic Ultrasound System utilizing advanced technologies such as Phase Inversion Harmonic Compound Imaging (eHCI), Dual Beam Generation (D-Beam), Speckle Resistance Imaging (eSRI), Synthetic Receiver Aperture (SRA), and Spatial Compound Imaging. • Various image parameter adjustments, a 12.1-inch LCD screen, and various probes are configured to provide clear and stable images. • Imaging modes: - B, 2B, 4B, B+M, M, and PW. • File Management: - Supports local and removable disk storage. The USB interface allows for fast image uploading to your computer in real-time mode. It has a storage capacity of 504 MB. • Operation: - The foldable keyboard, designed with a trackball, is easy and convenient for various operations. • General Measurements and Calculations: - Mode B: Distance, Perimeter/Area (Ellipse/Trace), Volume, Ratio, % Stenosis, Angle, and Histogram. - Mode M: Distance, Time, Inclination, and Heart Rate. - Mode PW: Velocity, Heart Rate, Time, Acceleration, Resistance Index (RI), Auto (auto-track).
Vu1 Ultrasound Device
• Ideal black and white Ultrasound machine for beginners • With microconvex probe • Ultrasound solution for your clinic • Portable design for field use • High frequency values

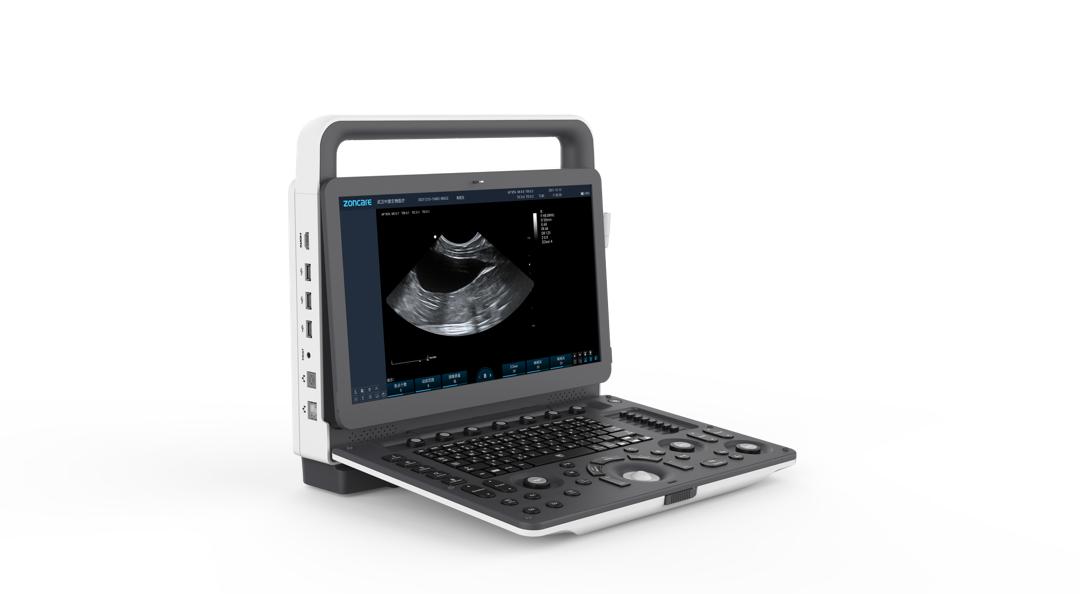

Vu2 Ultrasound Device
• 15.6-inch high-resolution medical LCD screen and 75-degree tiltable structure • Lightweight and portable design weighing approximately 6.3 kg • Use in field conditions without electricity thanks to the built-in battery • 1 USB 3.0, 2 USB 2.0 ports, HDMI output and DICOM 3.0 support • Backlit keyboard and customizable shortcut keys • Multiple probe connectors and 3 probe slots that can be used simultaneously • 2D, CFM, M, PW, CW, CMM, DPDI and AMM imaging modes • uSeed platform, THI, SRI, SCI and FCI advanced imaging technologies • EFOV panoramic imaging, Elastography, TDI and HR Flow capillary imaging • Veterinary software presets specific to dog, cat, horse, cattle, sheep, goat and pig species • Species-specific anatomical measurement packages, custom body markers and description sets • PW auto-trace and automatic calculation functions • Extensive range for abdominal, reproduction and rectal examinations Band multi-frequency probe support • One-Key Q-Save feature enabling parameter and image saving with a single button • Practical clipboard buffer management and biopsy guide support for quick review

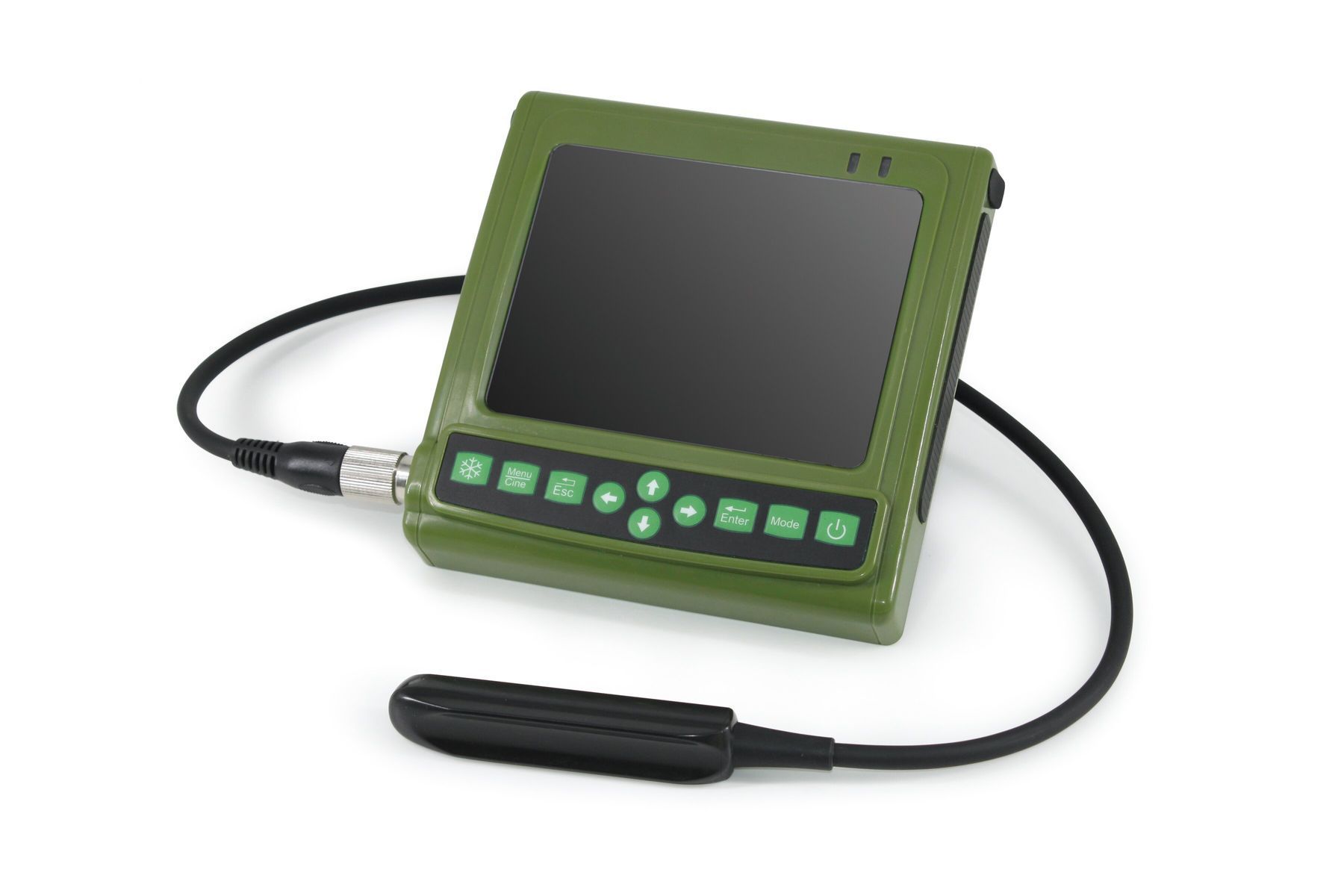

V1 Ultrasound Device
• 5.7-inch high-resolution color LED screen and powerful veterinary software package • Compact, handheld ergonomic design with a weight of approximately 1.1 kg and dimensions of 158 x 158 x 65 mm • High-capacity built-in lithium battery providing more than 5 hours of uninterrupted field use • Dual-purpose structure combining back-fat measurement function with B-mode ultrasound • Additional A-mode ultrasound support for precise back-fat and lean rate measurements • Practical operation keys combining TV, VGA and freeze functions • 10 different guideline (grid) options for quick measurement and efficient diagnosis • 6 different working backgrounds and customizable modes to suit different visual habits • 5.8GHz RFID wireless monitor connection support for real-time image transmission and remote consultation • Wireless image, data transfer and management capability with Android phones, tablets (Pad) and PC workstations • Diagnosis List feature for detailed obstetric (OB) record keeping and batch management • Water and dust resistant outer casing design • B, Multiple viewing and operating modes including B/B, B/M, M and A • Distance, circumference, area, pregnancy, back fat and meat ratio measurement packages • Standard 6.5 MHz multi-frequency linear rectal probe and optional convex, micro-convex, muscle linear probe support

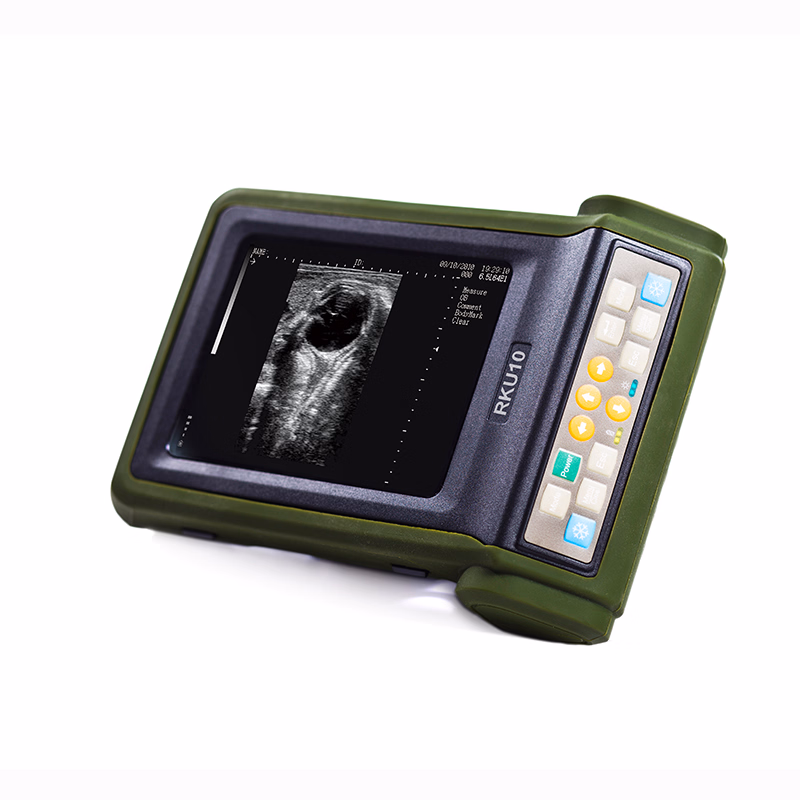

RKU10 Ultrasound Device
• 5.7-inch high-resolution LED display • Ultra-lightweight and ergonomic handheld design weighing approximately 1.1 kg • Built-in lithium battery with 5200 mAh capacity for more than 6 hours of continuous operation • Sunshine cover accessory to block bright light in field conditions • Symmetrical, fatigue-resistant structure suitable for left and right-hand use • Multiple strap options allowing carrying in hand, on chest, back, or waist • Special soft rubber outer casing that is splash-proof and dust-proof • B, 2B, 4B, M, B/M, and B-zoom viewing modes • 0 to 127 dB gain and 27 to 90 dB dynamic range adjustment • 100 frames of permanent image storage and 256 frames of cinema loop • Distance, perimeter, area, volume, depth, slope, and heart rate measurement packages • Obstetric (OB) for cattle, horses, sheep, goats, pigs, canids, felines, and alpacas/llamas measurement and pregnancy calculation modes

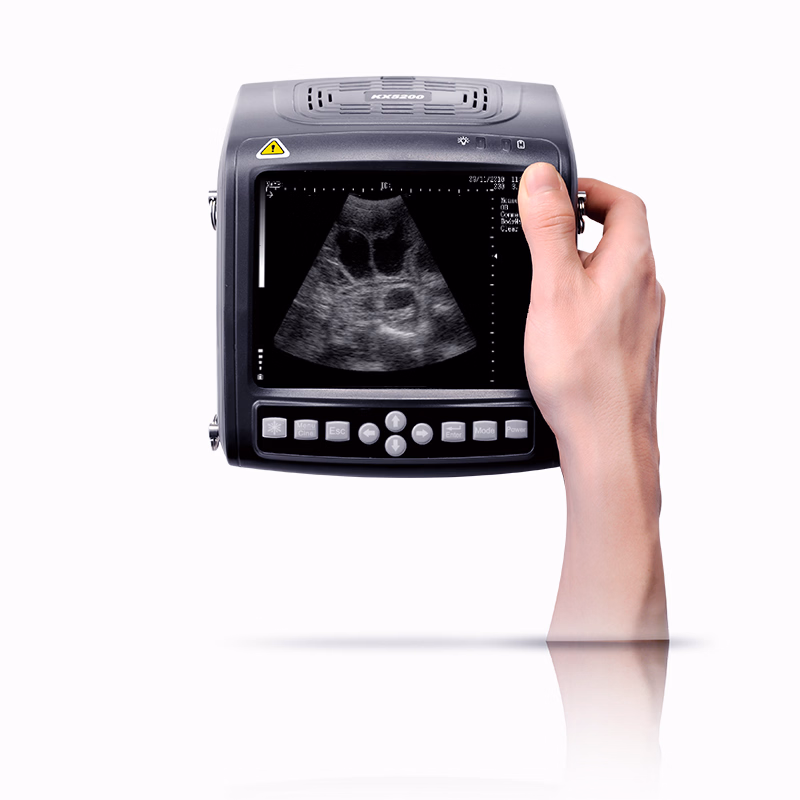

KX5200 Ultrasound Device
• 5.7-inch high-resolution color TFT LCD screen • Compact handheld design with approximately 1.1 kg weight and 155 x 180 x 80 mm dimensions • Over 200 minutes (3+ hours) of uninterrupted field use with dual battery support • Special sunshade cover accessory for comfortable use in sunny and open air • Flexible usage options with wrist, hand, neck or backpack concept • Water and dust resistant (splash-proof, dust-proof) body structure suitable for farm conditions • 5 different viewing modes: B, 2B, 4B, B/M and M • 0 to 127 dB gain and 27 to 90 dB dynamic range adjustment • 100 frames permanent image storage and 256 frames cine loop • OB (pregnancy and parturition) measurement reports for cattle, horses, sheep, goats, pigs, canids, felines and alpacas/llamas • Standard 6.5 MHz multi-frequency linear rectal probe and optional convex, micro-convex, rectal convex probe support.

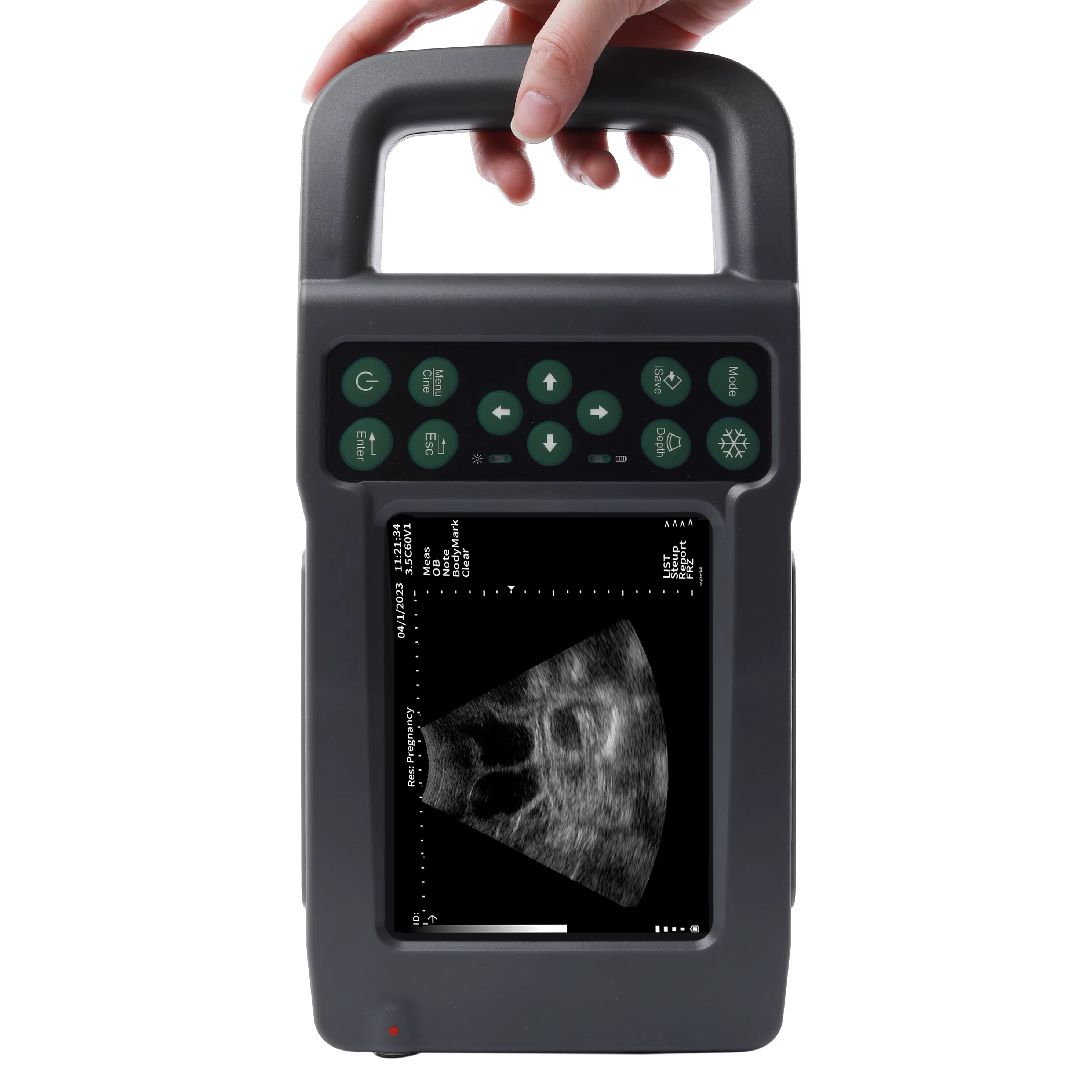

KX5600F Ultrasound Device
• 5.7-inch high-resolution LCD screen • Lightweight and hand-held ergonomic design weighing approximately 1.1 kg • Built-in lithium battery with 5200 mAh capacity for more than 5 hours of uninterrupted field use • Water and dust resistant outer casing • One-key image storage and parameter recovery function • 5 different display modes: B, B/B, 4B, B/M, M • 0 to 127 dB gain and 27 to 90 dB dynamic range adjustment • 420 image permanent storage capacity and 246 frames cine loop • General measurement packages for distance, perimeter, area, volume, surroundings, heart rate, and slope • Obstetric (OB) pregnancy calculation modes for cattle, horses, sheep, goats, pigs, canids, felines, and alpacas/llamas • Automatic back-fat measuring scale and lean percentage calculation function for pigs • Herd and mass data management and checklist saving feature for pregnancy monitoring • Single probe connector with automatic probe recognition technology • Standard 6.5 MHz linear rectal probe and optional convex, micro-convex, high-frequency linear probe support • PAL/NTSC TV output port for external display or video recording devices

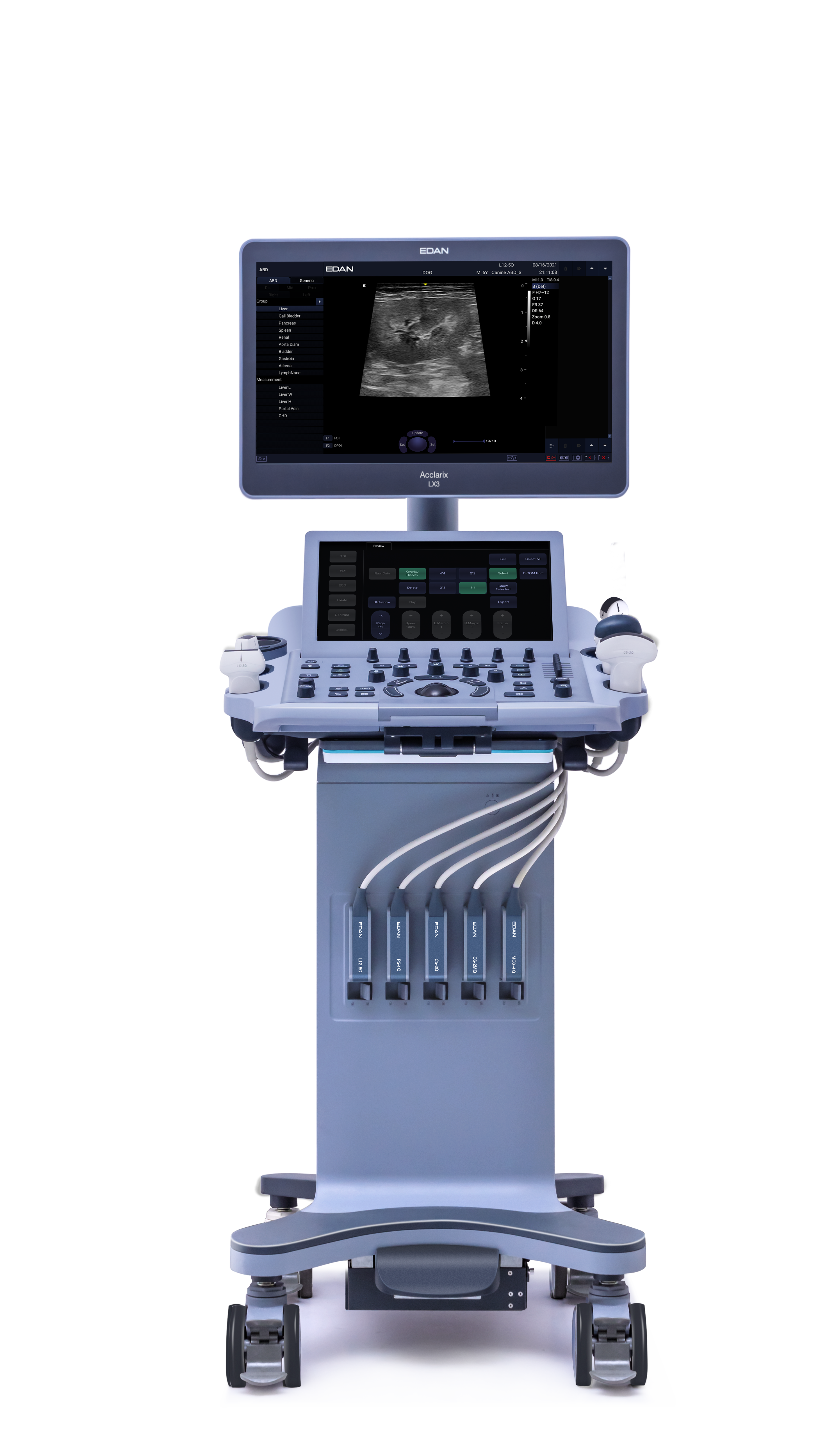

LX3 Ultrasound Device
• The Acclarix LX3 VET series Veterinary Diagnostic Ultrasound System consists of a main system and associated ultrasound probes (transducers). • The system circuits generate an electronic voltage pulse that is transmitted to the probe. • The piezoelectric array in the probe converts this electronic pulse into an ultrasonic pressure wave. • When in contact (paired) with the body, the pressure wave propagates through the body tissues. • The waves are then reflected within the body and detected by the probe, which converts these waves back into an electrical signal. • The system then analyzes the returning signals and creates an ultrasound image or spectral Doppler display. • The Veterinary Diagnostic Ultrasound System provides the operator with the ability to measure anatomical structures and includes analysis packages that provide information used by competent healthcare professionals for diagnostic purposes. • The system's user interface offers physical keys (hard keys) for frequently used functions during examination and touchscreen controls for mode-specific functions.
ODU5 Ultrasound Device
Advanced ARM9 embedded control system and FPGA signal processing architecture A/B mode ultrasound scanner specifically developed for eye diseases and veterinary ophthalmology screenings Special 5.7-inch LED/LCD ophthalmic display panel offering high-resolution and clear images Precise measurement modes for examination of intraocular structures, cornea, lens, vitreous humor, and retina in veterinary medicine Precise biometric measurements in A mode (e.g., intraocular distance and depth calculations) 2D mapping of intraocular lesions, foreign bodies, and structural abnormalities in B mode Portable, lightweight, and ergonomic body design suitable for clinical and field conditions Image freezing, recording, and cine loop review features
