Digital Radiography (DR) Systems

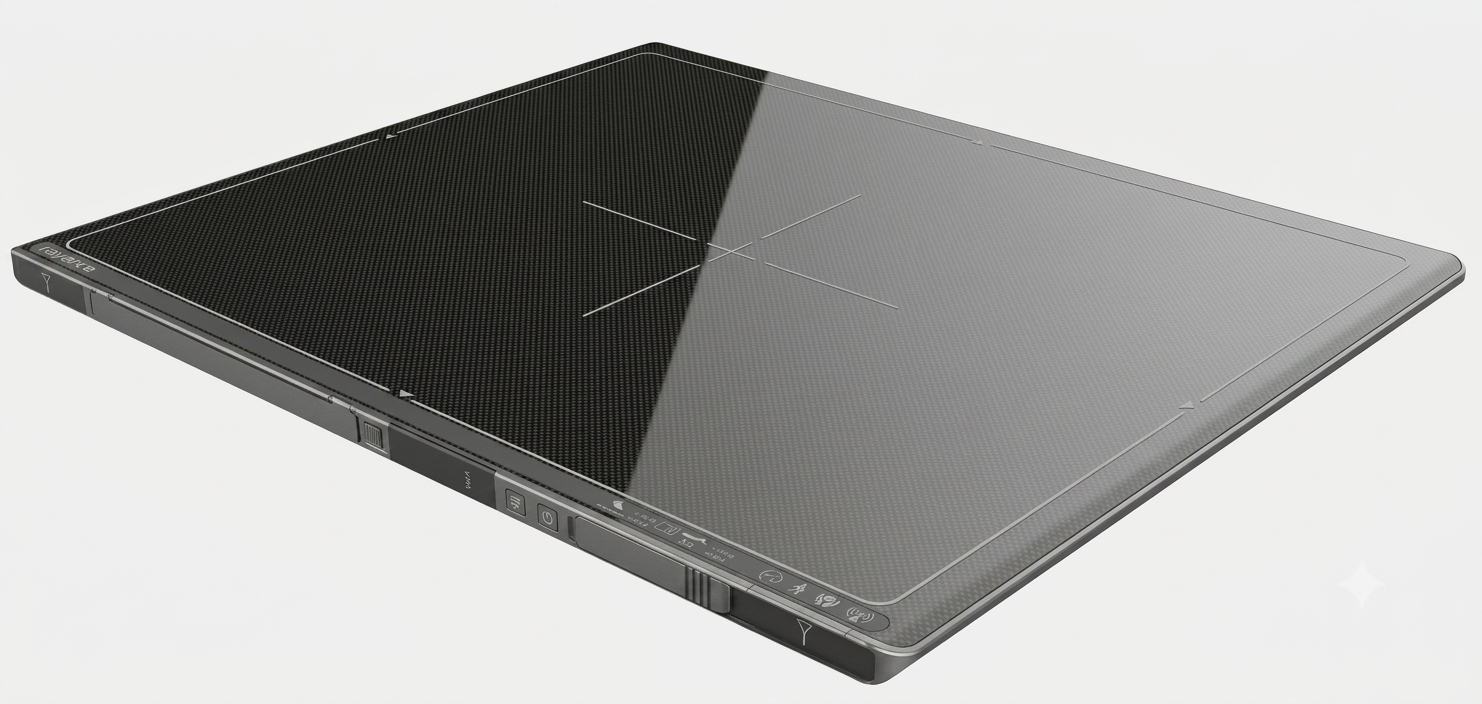

Rayence DR
• It offers variety in different sizes with models 1012-1417-1717. Performance • Scintillator: CsI / GOS • Pixel pitch: 127 / 140 µm • Energy range: 40–150 kVp (*1012WCC · WGC models available only with the 127 µm option) Features • IP66 water resistance • Load resistance: Distributed load 300 kg / Point load 150 kg • Slim (15 mm) and lightweight • Image storage: 200 images • 802.11ac Wi-Fi: High-speed image transfer • OLED: Displays various detector statuses (e.g., battery charge and status, wireless connection status, etc.)

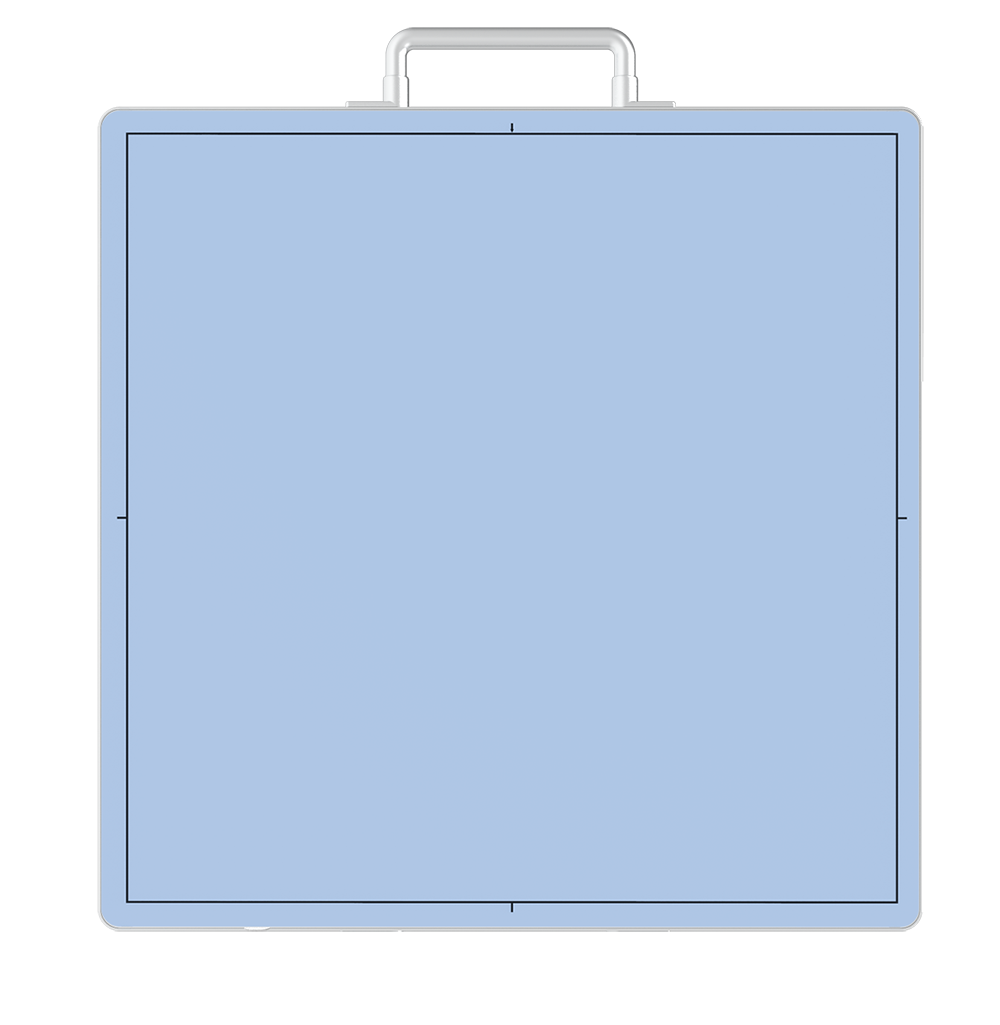

MND DR
• Detector Technology: a-Si • Scintillator: CsI • Image Size: 43x43 cm • Pixel Matrix: 3072x3072 • Pixel Pitch: 139 µm • A/D Conversion: 16-bit • Spatial Resolution: 3.6 LP/mm • Image Acquisition Time: 1 sec • X-ray Voltage Range: 40-150 kV • Data Interface: GigE • Power Consumption: 20 W • Adapter Input: AC 100-240 V, 50-60 Hz • Adapter Output: DC 24 V, 60 W • Dimensions: 46x46x1.5 cm • Detector Weight: 3.2 kg • Detector Housing Material: Carbon, PC+ABS • Ingress Protection: IP54 • Detector Surface Load: 300 kg • Detector 4 cm Circular Spot Load: 150 kg • Operating Environment: 5-35 °C, 10-75% RH • Storage Environment: -20-55 °C, 10-75% RH

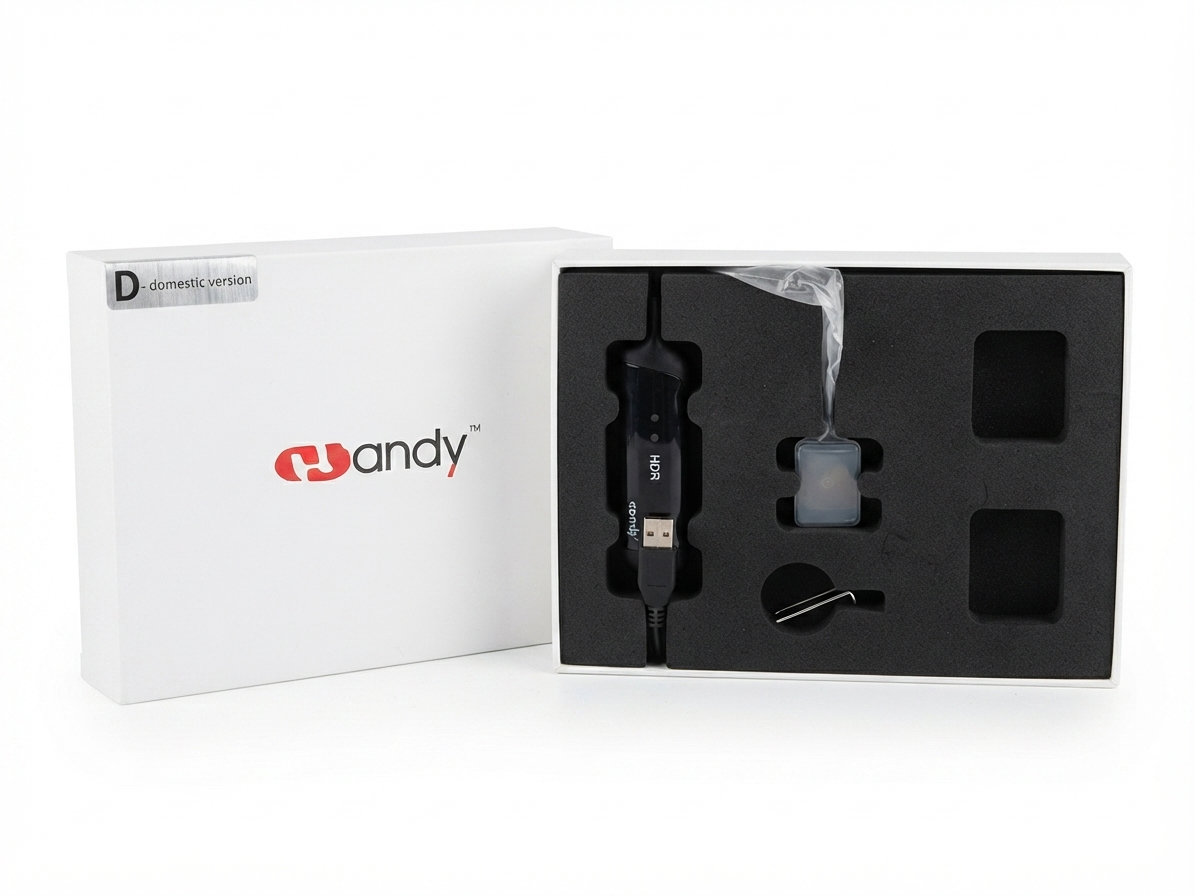

Handy Dental DR
• Low power consumption • Wide dynamic range • High-resolution scintillator • Wide exposure range • Easy to use on a computer with veterinary software • Wide dynamic range • High-resolution X-ray images
