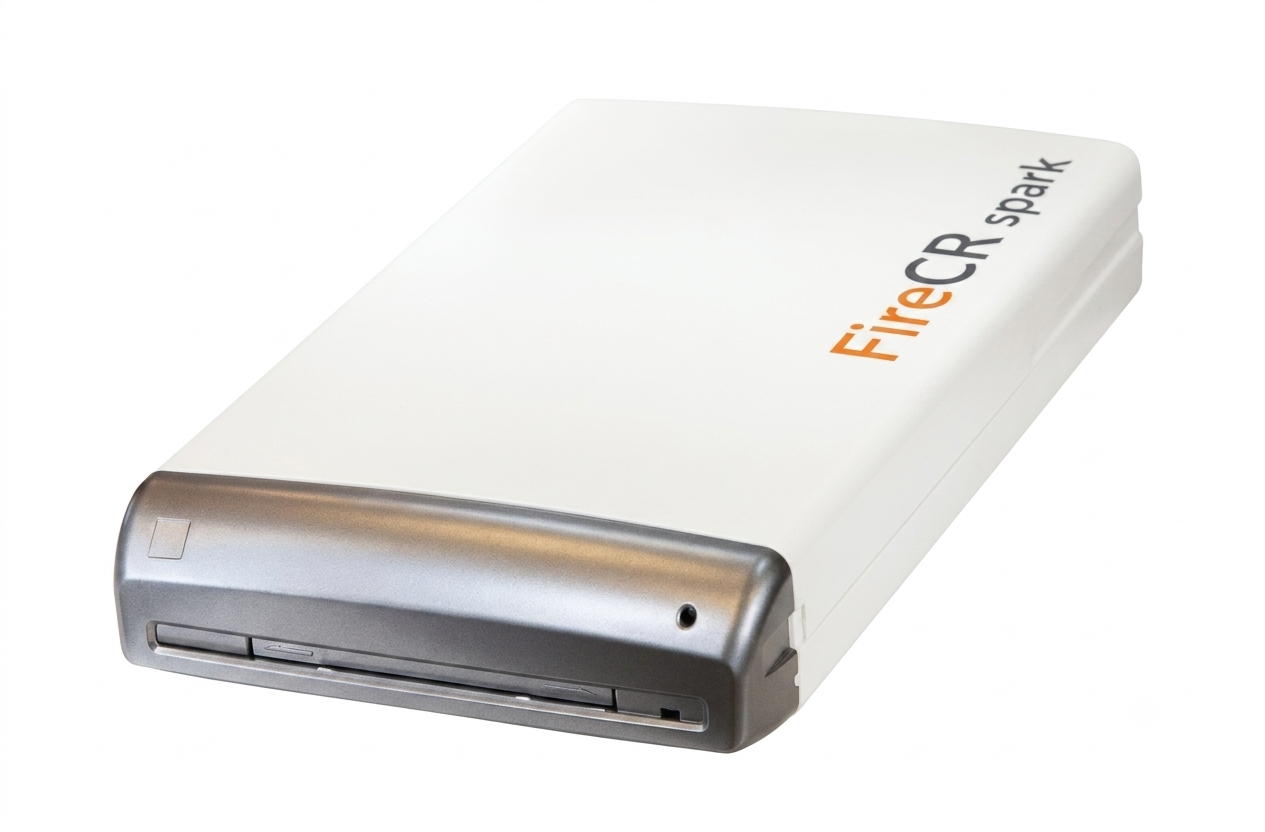

Fire CR Spark
• State-of-the-Art Scanning Mechanism
- FireCR Flash adopts state-of-the-art scanning mechanisms using optical modules with high beam transmission efficiency to create its compact and robust structure.
• High Throughput
- The unique and patented bidirectional scanning mechanism makes it possible to increase efficiency and achieve high throughput.
• Scanning Resolution
- User-selectable 100 µm and 200 µm resolutions allow the user to perform diagnostics for various purposes.
• Detector
- The high-sensitivity photomultiplier tube in FireCR Flash provides high gain, wide dynamic range, and high-speed response for radiographic imaging.
• Powerful Acquisition and Diagnostic Software
- The Acquisition and Diagnostic Software designed for FireCR Flash and its accurate and fast data processing make the reader more powerful.
TECHNICAL SPECIFICATIONS
- Operating Temperature 15°C ~ 30°C (59°F ~ 86°F)
- Temperature Gradient 0.5°C / Min
- Relative Humidity 15% ~ 95% (non-condensing)
- Storage Temperature -10°C ~ 50°C (14°F ~ 122°F)
- Storage Humidity 15% ~ 95% (non-condensing)
- Storage Atmospheric Pressure 500 ~ 1,060 hPa
- Transport Temperature -10°C ~ 50°C (14°F ~ 122°F)
- Transport Humidity 15% ~ 95% (non-condensing)
- Transport Atmospheric Pressure 500 ~ 1,060 hPa
- Installation Category II
- Pollution Level 2
- Liquid Pressure IPX0
- Altitude up to 2,000 m
- Protection Class
- Class 1
- Equipment Maintenance
• No user maintenance or user servicing is required.
• Cleaning
• Do not attempt to clean the inside of the reader.
• Wipe the outside of the reader with a soft, dry cloth to remove dust.
